Machinery manufacturers and plant engineers relying on the pneumatic control of automated assembly lines and end-to-end packaging equipment can reduce their operational compressed air energy costs significantly with the highly repeatable and dependable FS10i flow switch monitor from Fluid Components International (FCI).

Many types of automated assembly lines and packaging machinery frequently use compressed air to perform embedded processes in a wide range of industries.

Manufacturers and users of this type of machinery recognize that the production of compressed air is a significant contributor to operating costs.

The proper measurement of compressed air flow lines with the FS10i switch/monitor can provide valuable information to the equipment’s control system in order to optimize the air flow and reduce operating energy costs.

It performs excellent air leak detection monitoring and alarming, which can occur due to failures of process piping, tubing or compressor seals.

The dual function FS10i flow switch/monitor from FCI is ideal for trending the rate of air flow with its 4-20 mA flow monitoring output and includes a relay output for low flow trip point detection.

The trip point and flow range are easily user set in the field by technicians under actual operating conditions using simple, tactile feedback buttons. By simply simulating a high and low flow while in the calibration mode, the FS10i will range the 4-20mA output signal over that span and provide reliable indication of flow.

FCI’s advanced FS10i air flow switch/monitor operates over a wide flow range from 0,076 MPS to 122 MPS. Repeatability is ±0.5% of reading. It is designed for simple insertion into threaded tees in 13 mm or larger diameter pipe.

The dependable FS10i is fast responding (under four seconds) and highly repeatable to both increasing and decreasing changes in flow rate.

This capability provides engineers with the ability to adjust compressed air levels to variable production line demand.

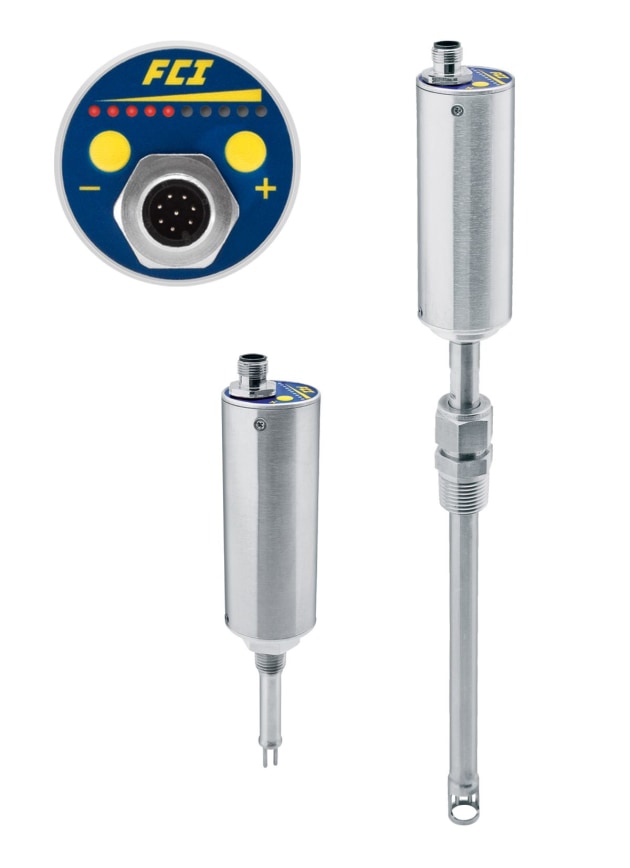

The FS10i switch/monitor features a top/front mounted 10-LED array and its wetted parts are 316L stainless steel with the flow sensor’s thermowells constructed of highly corrosion resistant Hastelloy C-22.

It operates in measured air temperatures up to 121°C and at pressures up to 138 bar.
The electronics are contained in a stainless steel body and protected aluminium end cap which carries IP65/66/67 protection ratings.

The FS10i is the only instrument of its type and in its price range to carry a SIL 2 compliance rating. It has no moving parts to clog or foul and requires no routine maintenance, which saves time and expense over any mechanical-technology based flow switch.
