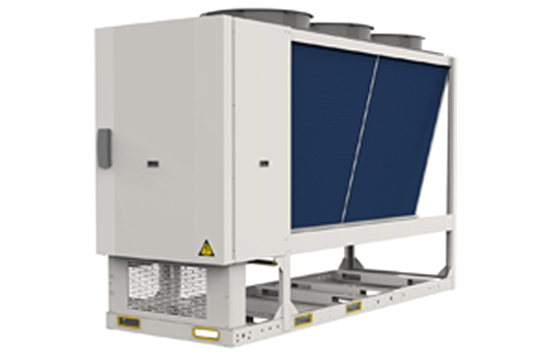

• MultiChill can deliver up to 1360kW of installed capacity.
    MultiChill can deliver up to 1360kW of installed capacity.

Airedale by Modine, has launched MultiChill, a modular, low-GWP, free-cooling heat pump chiller range to join its new series of cooling solutions.

MultiChill offers flexibility and efficiency as a smaller capacity heat pump chiller with modularity built into its design.

With individual unit capacities between 53kW and 103kW, up to 16 MultiChill heat pump chillers can be connected on the same water circuit, delivering up to 1360kW of installed capacity.

This can be done at the point of installation or with provision included for units to be added later, futureproofing installations against rising demand.

The part-load efficiency benefits of MultiChill are further enhanced when installed in a modular configuration, with the system able to comfortably operate within 2-100% of available cooling capacity.

Optimised for lower GWP refrigerant R32 and available with free cooling technology, MultiChill delivers a SEER of up to 4.89 (cooling only) and a SCOP of up to 4.08 (heat pump).

MultiChill FreeCool allows the system to operate without mechanical intervention, significantly reducing energy consumption.
