Temperzone has released its new chilled water fan coil units, which includes two separate ranges, for the Australian market.
There is the the Evolve IMD-Y standard compact profile range, and the Evolve IMDL-Y low profile range.

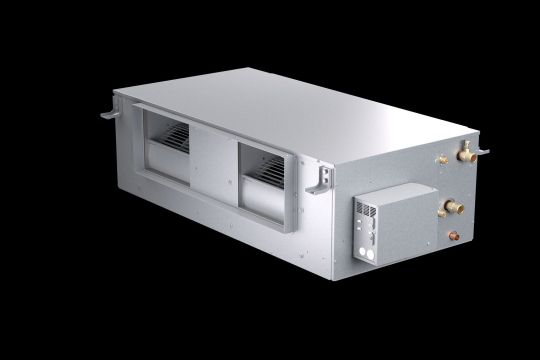

The Evolve IMD-Y standard profile range features high static fans and consists of 9 individual models with the following nominal airflows:
- IMD 97Y 450 l/s
- IMD 137Y 600 l/s
- IMD 172Y 750 l/s
- IMD 212Y 900 l/s
- IMD 282Y 1200 l/s
- IMD 352Y 1500 l/s
- IMD 422Y 1800 l/s
- IMD 522Y 2350 l/s
- IMD 702Y 2850 l/s
The Evolve IMDL-Y low profile range features high static fans. These low-profile units have heights of 255 mm and 265 mm for installations with space restrictions. Evolve IMDL-Y range consists of 4 individual models with the following nominal airflows:
- IMDL 42Y 200 l/s
- IMDL 62Y 330 l/s
- IMDL 92Y 440 l/s
- IMDL 132Y 650 l/s
All Evolve fan coil units are available in left and right hand variations and can be configured with both heating and cooling coils; cooling coils only; or cooling coil with electric heat.
The Evolve ranges all have common features which make them a first choice when selecting chilled water fan coil units for your projects.
- All have high static fans with EC direct drive fan motors to efficiently provide a wide range of air flows.
- All electric heat units feature PTC elements, which adapts its output relative to air velocity. Due to this surface temperature control these safe self-limiting elements will not overheat.
- Electric heat units also feature SSR element control relays, allowing either on/off silent operation or silent pulse operation of element control by customer and control systems installed.
- Each fan coil has an ALC interface controller that allows for external input of 0-10V DC control of fan speeds, or option of a three-speed local switch fitted.
- All units feature Hydrophilic coated coil fins which allow better shedding of moisture and protects the aluminium fins from corrosion.
- Evolve IMDL-Y low profile units feature rigid moulded PVC drain trays which are light weight, and their low thermal conductivity reduces condensation.
- Evolve IMD-Y compact units feature painted galvanised steel drain tray, with external thermal insulation fitted to prevent condensation forming externally.
- Evolve chilled water fan coils are fully compliant with AS/NZS standards. These include standards relating to the drain tray; electrical safety; EMC compliance; protection rating; acoustic performance. Also meets Greenstar requirements for access to filters.
Various accessories are available with the Evolve series. These include:
- Evolve IMDL-Y low profile unit filter options, flat panel (EU2/G2).
- Soon to be released, filter box options for Evolve IMD-Y standard profile units with EU2/G2 flat panel filter or EU4/G4 with pleated 50mm filter.
- Flexible hoses.
- Spring mounting kits.
- Evolve IMDL-Y low profile unit supply air multi-spigot plenums
To help speed up selections, the Evolve range of chilled water fan coils will be available in the Temperzone Fan Coil Selection Program. The selection program reports kW output according to airflow. In addition, tables of both sound power and sound pressure levels will be provided in our comprehensive technical documentation.
