Researchers in South Korea have developed a new digital twin-based framework for Relocatable Modular Buildings (RMBs).
Although RMBs represent a sustainable construction method where buildings are assembled and transported using prefabricated modules, there are logistical challenges.
These buildings can be quickly assembled from prefabricated “modules” and easily transported, minimising costs and environmental impact while providing safer and cleaner construction environments.
However, the management of assets and modular units for reuse and relocation across multiple lifecycles remains a major challenge in RMB projects.
This advanced framework integrates cutting-edge technologies to enhance management efficiency throughout the building lifecycle, establishing a foundation for wider digital twin integration in construction.
A research team led by Associate Professor Yonghan Ahn from the School of Architecture & Architectural Engineering at Hanyang University ERICA in South Korea, developed the framework.
“Digital twin technology is a groundbreaking tool that offers a digital replica of physical assets, integrating real-time data, predictive analysis, and decision-making abilities,” Ahn said.
“Although digital twins are gaining popularity in other fields, their use in modular construction remains limited. We introduce a novel digital twin-enabled facility management system (DT-FMS) tailored specifically for RMBs.”
The team also included contributions from Dr. Dennis Nguyen from Hanyang University.
The new DT-FMS integrates building information modelling (BIM), internet of things (IoT), and geographic information systems (GIS) to create a detailed virtual model of RMBs.
This model supports real-time monitoring, performance analysis, and logistics simulations across the building’s lifecycle. BIM offers robust 3D modelling and comprehensive building information. IoT provides real-time sensor data. GIS contributes critical geographic data, supporting effective logistics of modular units and location-based decision making.

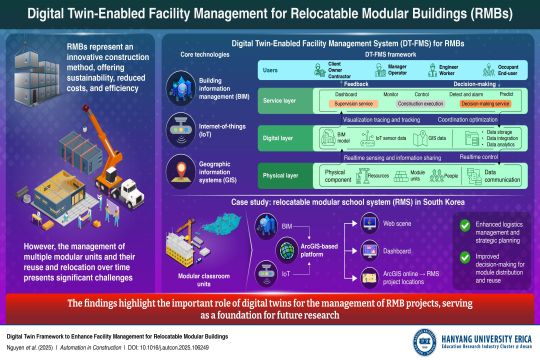

This framework is structured across three interconnected layers: physical, digital, and service.
The physical layer forms the foundation for real-time tracking and communication among different physical components such as resources, modular units, and people, including stakeholders, engineers, and workers.
The digital layer includes modelling tools, data integration, and analytics. Finally, the service layer allows users to monitor, control, and interact with the DT framework, supporting effective decision making throughout the building lifecycle.
To demonstrate the practical application of the framework, the researchers conducted a case study on a relocatable modular school system in South Korea. DT-FMS enhanced the decision making for module distribution and reuse, resulting in improved management efficiency.
“Our research highlights the important role of digital twins in promoting a circular economy by enabling the reuse, reconfiguration, and optimal relocation of modular units, thereby minimising waste and maximising value throughout repeating project cycles,” Nguyen said.
