Mitsubishi Electric Climaveneta (MEHIT) has extended the successful NX2 Air Cooled chiller range with capacities up to 921kW.
The new NX2-G02 and NX2-G06 models now range from 40kW to 921kW and are available in R410A or low GWP refrigerant R454B.

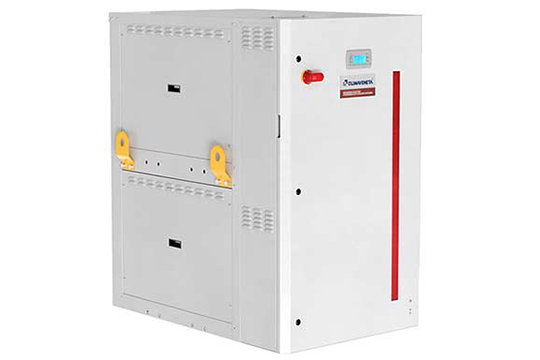

With electronic expansion valves and variable speed condenser fans included as standard, the NX2 Air Cooled Chillers are designed to deliver high operating efficiencies with low noise, making them ideal for comfort applications.
All the main hydraulic and mechanical components are integrated inside the unit, providing the ideal plug and play solution for HVAC plants.
The NX2 Range of air cooled chillers are
available with either brazed plate or DX shell and tube evaporators depending on size.
Single circuit chillers available only with brazed plate evaporators (P) from 40kW to 226kW.
Multiple circuit chillers available with brazed plate evaporators (P) from 167kW to 367kW.
Multiple circuit chillers available with DX shell and tube evaporators (T) from 167 to 921kW.
The complete NX2 Range is Eurovent certified and all sizes are completely ErP2021 compliant.
The NX2 Range has been designed with low operational sound levels in mind. Thanks to a specific design, the new series models are quieter when compared to the previous versions.
The optional Noise Reduction Kit (NR Kit) achieves best-in-class sound power levels while maintaining the same performance and footprint as the standard noise version.
The new NX2 Chiller Range has been engineered for optimal seasonal efficiencies, achieving improved SEER values that are over 15 per cent higher on some models compared to the previous range.
These values could be further increased by selecting options such as the ultra-performance kit in the single circuit NX2 machines and EC fans throughout the entire range.
The NX2 Range has been designed to achieve higher efficiencies at both full and part load, lower sound power levels, larger operating limits and a smaller footprint compared to previous models.
As a result the NX2 Range of air cooled chillers is not only ideal for new projects but also the perfect replacement of old units in existing plants.
Furthermore, the integrated hydronic modules (with optional buffer tank available) guarantee simplified installation and time-saving commissioning. The result is a ready-to-be-installed solution.
