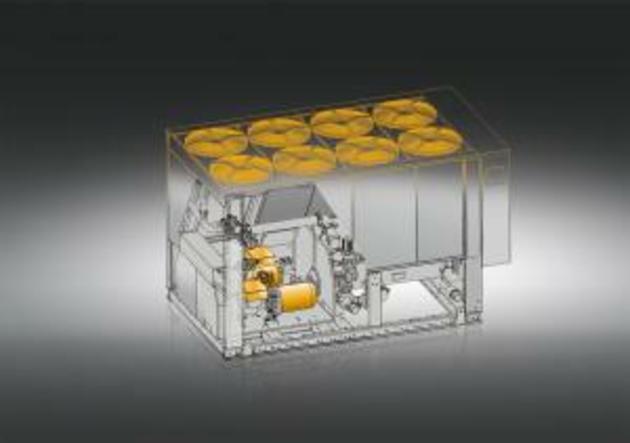

In the cooling-duty range between 300 and 1330 kW, the new air-cooled chillers from the GEA GLFC – DA2 range, with free-cooling function, are now available.
GEA Heat Exchangers has increased the energy efficiency of these models by an average of 20 per cent over their predecessors.
This improvement is primarily the result of the chillers' patented, integrated sub-cooler circuits. Depending on the model, an EER greater than 3.2 is achieved for 15/10°C return/supply temperatures, 30 per cent ethylene glycol, and 35°C air-intake temperature.
In comparison to the predecessor range, the maximum unit output possible in free-cooling mode is consistently achieved at outdoor temperatures around 2°C.
GEA says these chillers are well suited to facilities that must also be cooled while outdoor temperatures are low, such as computer centres, telephone exchanges, production facilities and buildings with a large share of glazed façades.
For employment in IT and telecommunications facilities, a model with a maximum media outlet temperature of 20°C can be selected (the default version is 15°C). Also optional is an extended employment range for air-intake temperatures, down to -25°C or up to 50°C (default: -15°C and 46°C).
Like the predecessor range, the new chillers for outdoor employment have two refrigerant circuits with R-134a as refrigerant and screw compressors with continuously variable control.
Shorter piping lengths as well as lower pressure drops in the evaporator contribute to greater energy efficiency.
As options, EC fans are available, as is a noise-optimised SL version. In the standard version, 17 model sizes can be supplied, and the SL version is possible with 16 output ratings.
A master-slave control system makes redundant and efficient operation possible. Integration into the higher-level building services management system can likewise be implemented without difficulty.
The free-cooling function enables significant savings, because with the GEA GLFC – DA2 range, this function already goes into operation when the outside-air temperature falls by 2K below the return-flow temperature of the medium.
Under these conditions, the integrated free-cooling heat exchanger cools the water to the greatest possible extent, and power consumption of the compressors falls appreciably.
With low outdoor temperatures, it is even possible to dispense with operation of the compressor entirely. Reduced operating hours of the compressor lower energy consumption and CO2 emissions and extend maintenance intervals, GEA says.
Owing to its reduced operating expenses, the added investment cost for a model in the GEA GLFC – DA2 range with free cooling, in comparison to the costs of a GLAC – CA2 (without free-cooling function), can be amortised within only a few months, depending on application circumstances and geographical region.
