ebm‑papst has expanded its range of EC motors for supermarkets with the new iQx-EC motor which is available for global use.
The previous NiQ motors are now being replaced by this efficient and universally applicable iQx. The range of applications in supermarkets includes bottle coolers, refrigerators, refrigerated display cabinets, refrigeration/freezer islands, and condensing units.
The new iQx is mechanically compatible with existing split pole and previous EC motors, operates with a high efficiency of up to 68%, and enables easy 1:1 replacement thanks to identical installation dimensions.
Retrofitting older refrigerated cabinets can be worthwhile in terms of the energy savings that can be achieved. Depending on the ambient conditions, the iQx motor has a service life of more than 40,000 hours.

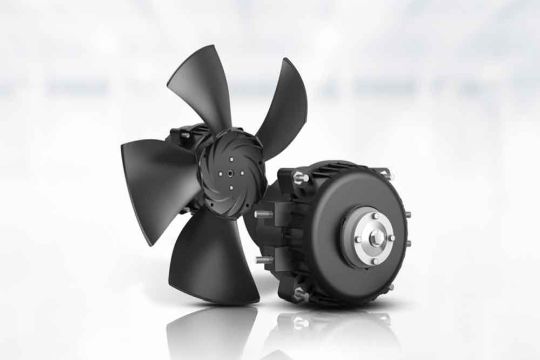

The compact motor is available both as an OEM component and as a plug-and-play complete system with matching axial impellers in diameters of 172, 200, 230, and 254 mm, in which the individual components are perfectly matched to each other.
Compared to standard metal impellers, the aerodynamic design contributes to a noise reduction of up to 8 dB(A) and further energy savings of 6% can be achieved.
Another issue with refrigerated display cases is the refrigerant used. Since January 1, 2015, Regulation (EU) 517/2014, also known as the F-Gas Regulation, has been in force.
The switch to systems that comply with EN 60335-2-89 and the F-Gas offers considerable ecological and economic advantages, particularly in the food retail sector.
The EN 60335-2-89 standard regulates the safety of electric refrigeration appliances for commercial use.
It is particularly relevant for the use of flammable refrigerants such as R290 (propane). The iQx from ebm‑papst complies with the European standard EN 60335-2-89 (household appliance standard – special requirements for commercial refrigerators and freezers) as standard and represents a safe, environmentally conscious, and sustainable cooling solution in this area.
The iQx motor from ebm‑papst meets all standard market approvals (UL, CSA, VDE, CCC) and, with its wide voltage input range of 100-240 VAC, 50/60 Hz, can be used worldwide in a wide variety of supermarket applications.
In addition, it has protection class IP65 and is therefore also suitable for demanding, humid or dusty environments.
