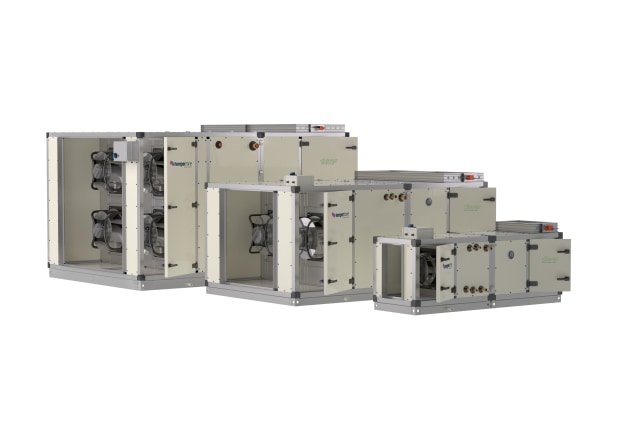

Temperzone has released its Clever MT series high-quality air handling units.
These all-aluminium units are lightweight, highly corrosion-resistant, and meticulously crafted with
superior design elements to deliver exceptional performance.
Temperzone’s Clever MT standardised range of air handling units offer high-quality features while providing certainty to aid quick and easy HVAC system design and the flexibility to rely on shorter lead times and optimum savings.
This is because the MT series offers pre-engineered standardised options that allow users to configure their unit to suit their requirements.
The MT series consists of eight EC Plug fan units with maximum nominal airflow ranges from 750 l/s to 15,000 l/s, each capable of a minimum 400Pa external static pressure.
Epoxy-coated cooling and heating coils are available in eleven combinations with 1 or 2-row heating coils and 4, 6 or 8-row chilled water coils.
The MT series are available as right-hand or left-hand units – orienting all water and electrical connections, drainage, gauges, and service access doors.
Choose between horizontal or vertical air discharge, horizontal and/or vertical return air plenum, or return air/outside air mixing dampers (EL100 opposed blade dampers and motorised or manual actuators).
The MT Series has a range of standardised optional accessories, including a Magnahelic gauge, internal LED lighting, inspection windows, and optional filters - G4 panels, F7 bags and F9 filter cartridge options.
The Clever MT is built with an all-aluminium design with anodised aluminium profiles and base channels.
T2 / TB2 65mm tropical profile and 50mm thermal break panels offer exceptional thermal performance to prevent condensation in high humidity locations or with very low supply air temperature.
The EC Plug fans are wired to an electrical interface cabinet with an external isolator and a potentiometer that can control the internal fan speed. The electrical interface cabinet allows for Modbus serial communication protocol, all internal control terminations, and multiple controller modules for pressure, volume and temperature.
All units come with a moulded UV-resistant, anti-fungal ABS drain tray designed with a sloped design to the drain connection, eliminating water pooling and allowing for efficient condensate removal.
